## Conductor and Insulator Properties

• The nucleus (center) of an atom contains protons and neutrons. Electrons orbit around the nucleus.
• The atoms of conductive material have single (or few) electrons in the outer orbit called Valence Electrons. They are situated so they can be moved from one atom to another easily and enhance the movement of electrons. Copper is a good conductor and is used for most wires.
• An insulator has many (7-8) electrons in the outer orbit, these electrons are very difficult to move from one atom to the other and resist the movement of electrons.

An electrical current (the movement of electrons) happens when there is a potential difference (voltage) between the ends of a conductor.

Conductor atom

Insulator atom

# Basic Electricity

Single electron in outer orbit

Multiple electrons in outer orbit

## Direct and Alternating Current

Current flows in one direction. A battery operated flashlight is a very common example of direct current.

0 deg

0 sec

0 V

### 120 V Sine Wave

180 deg

1/120 sec

0 V

360 deg

1/60 sec

0 V

120 V

+170 V

0 V

-170 V

Degrees

Time

Voltage

Peak voltage

Nominal voltage

Peak voltage

At 0 degrees the voltage is at 0 volts and starts to rise to a peak voltage of 170 volts at 90 degrees. At 90 degrees the voltage goes back down to 0 volts at 180 degrees. The current then reverses direction and rises to a peak voltage of -170 volts  at 270 degrees. To complete the cycle the current goes back to 0 volts at 360 degrees and the cycle starts over.

Alternating current (AC)

Direct current (DC)

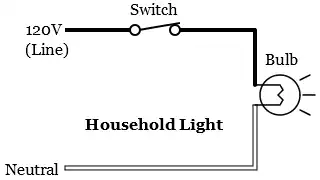

Current flows in both directions. 120 VAC (120 VAC) household power is an example of AC current. The current in 120 VAC changes direction 120 times per second as shown below.
