GFCI and AFCI Wiring

GFCI and AFCI outlets have two sets of terminals (two sides). The line side connects to line voltage, the load side can connect to other outlets that will have the same protection.

GFCI and AFCI Line Wiring

Power is connected to the GFCI line side as shown. The load side of the GFCI will have yellow tape over it and is not connected in the diagram below.

Ground connection is not shown

Line Side*

Load Side*

*Line and load terminal locations can differ between outlet brands.

GFCI and AFCI Load Wiring

GFCI and AFCI Load Wiring

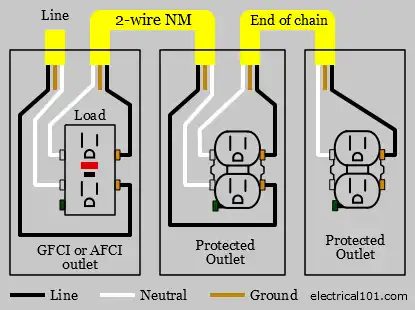

GFCI or AFCI outlet with two standard outlets connected to its load.

Power is connected to the GFCI or AFCI line side. Protected outlet(s) will be connected to the GFCI or AFCI load side as shown below. Ground connection is not shown.

*Line and load terminal locations can differ between GFCI or AFCI outlet brands.

GFCI and AFCI outlet with one standard outlet connected to its load

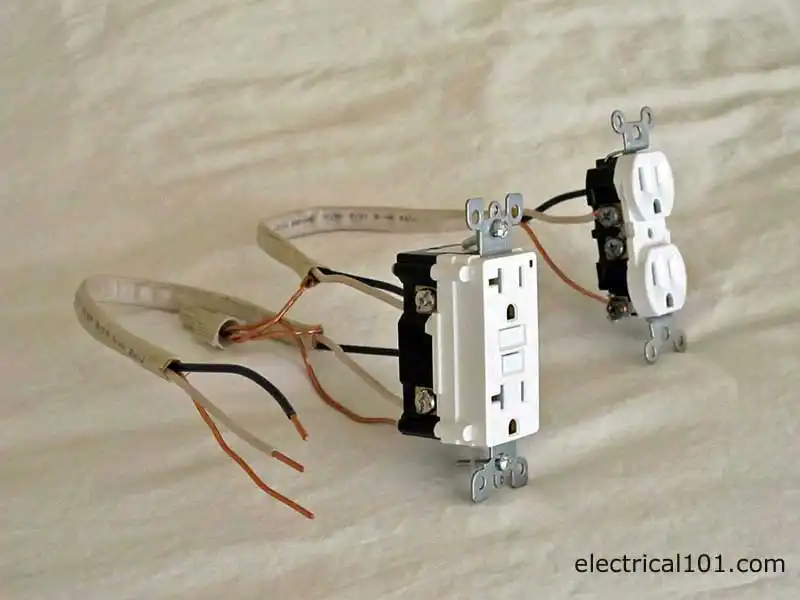

GFCI Load Wiring Front View

GFCI line side*

GFCI load side*

(Covered by yellow tape when new)

Arrow down right Arrow up left

GFCI protected outlet

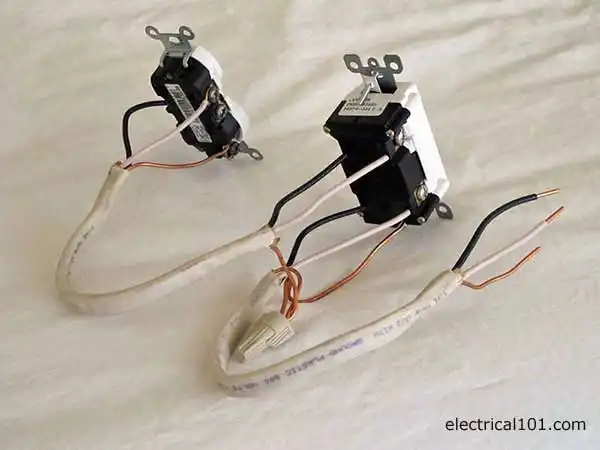

GFCI Load Wiring Rear View GFCI and AFCI rear view

GFCI and AFCI Load Wiring Diagram

Can I Install a GFCI or AFCI without a Ground Wire?

Yes, they will work properly if there is no ground. A plug tester with a GFCI test button will not trip a GFCI because the tester leaks a small amount of current from line to ground. The GFCI and AFCI test button is used for testing.

GFCI Adapters

A GFCI adapter can be used on a standard outlet. Plug the adapter into an outlet and anything you plug into the adapter will have GFCI protection.
