How to Convert 3-Way Switches to Outlets

To convert a 3-way switch to an outlet, one of the switches is removed and replaced with an outlet. Both electrical boxes will need to be rewired.

See the wiring diagrams below, showing how to convert a load side switch to an outlet.

Ground connection diagram is shown separately.

Convert 3-Way Switches to Outlets

Convert 3-Way Switch to Outlet Wiring Diagrams

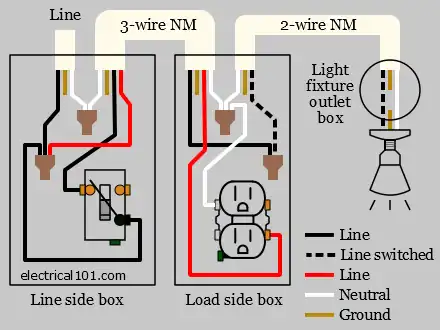

3-Way or Single Pole Switch on Line Side, Outlet on Load Side

Line Side Box

1. One of the traveler wires is removed from the 3-way switch.

2. Using a wire connector, this traveler is connected to the line wire and a wire that will connect to the common terminal of the line side 3-way switch. This will provide power to the new outlet in the load side switch box.

Load Side Box

3. The 3-way switch is removed.

4. Using a wire connector, the traveler wire from the switch in the line side box is connected to the wire that goes to the light.

5. The other traveler wire (line) from the line side box is connected to the outlet line terminal.

6. A neutral wire is connected to the neutral terminal of the outlet and the neutral wire connector.
