Question or Comment?

Switches are spring loaded to minimize arcing and prolong their life. However, a very small amount of arcing is present when a switch is toggled. A bad switch may not fail completely, burned contacts may cause intermittent failure. Keep this in mind when troubleshooting switches. Intermittent failure could make troubleshooting difficult, especially with 3 and 4-way switches.

The Anatomy of a 4-Way Switch

Since there is no on or off position for a 4-way switch, it can be installed with the black terminals on the top and the brass terminals on the bottom or vice versa.

When the toggle is in one position, the left side black terminal connects to the left side brass terminal. The right side black terminal connects to the right side brass terminal.

When the toggle is in the other position, the left side black terminal connects to the right side brass terminal. The right side black terminal connects to the left side brass terminal.

Actual toggle position can vary with make and model

How to Test a 4-Way Switch

Turn off power to the switches at the circuit breaker and using a tester, make sure power is off. Pull the switches out from their switch box so you can access the switch terminals. The wire connections do not have to be removed. Find Multimeters

Using a continuity tester or the continuity setting on a multimeter, check continuity between terminals as shown. Actual toggle position can vary with make and model.

How to Troubleshoot Four-Way Switches

How to Locate a Bad 4-Way Switch

Usually when a 3-way or 4-way switch fails, lights can be toggled on and off on all but one switch. Any switch that toggles the light(s) on and off is probably working properly. Follow these steps to find which 3 or 4-way switch is bad.

1. Toggle each switch until the light comes on. Toggle the first switch to see if it turns the light on and off. If it does, it is a good switch. Leave the light on.

2. Toggle the next switch to see if it turns the light on and off. If it does, it is a good switch. Leave the light on.

Repeat the process for the rest of the switches.

One of these switches will not turn the light on and off (while the light is on) and that is the bad switch.

4-way toggle switch 3 4-way toggle switch 4 4-way toggle switch 1 4-way toggle switch 2 4-way toggle switch 1 4-way toggle switch 1

When the switch toggle is in one position, you should get continuity on each side of the switch.

Arrow right up short Arrow left up short Arrow left down short Arrow right down short

4-Way Toggle Switches

When the switch toggle is in the other position, you should get continuity the opposite side and opposite end of the switch.

4-way toggle switch 2 4-way toggle switch 2 Arrow right up short Arrow left down short Arrow left up short Arrow right down short

4-Way Decora Switches

Arrow right down short

When the switch toggle is in one position, you should get continuity on opposite sides as shown.

4-way switch decora 1 4-way switch decora 1 Arrow left up short Arrow left down short Arrow right down short 4-way switch decora 2 4-way switch decora 2 Arrow left up short Arrow right down short Arrow right up short Arrow left down short

When the switch toggle is in the other position, you should get continuity the opposite side and opposite end of the switch.

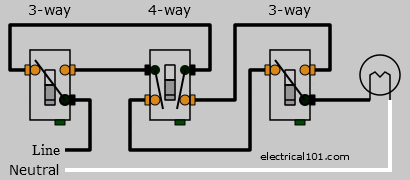

Toggling 4-Way Light Switch

4-Way Toggle Switch Animation
